    1000base sx 850nm 550m sfp module

  • Learning Center    release time:2019-08-06
  • The SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps and 550m transmission distance with MMF. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA. It consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

    All optical transceivers are RoHS compliant and could be 100% compatible with branding equipment, such as Cisco, Extreme, Juniper, HP, H3C, Linksys, Huawei, Alcatel-Lucent, Foundry, Nortel, Force10 etc.


    Features

    ● Data-rate of 1.25Gbps operation

    ● 850nm VCSEL laser and PIN photo detector

    ● Compliant with SFP MSA and SFF-8472 with duplex LC receptacle

    ● Digital Diagnostic Monitoring: Internal Calibration or External Calibration

    ● 550m transmission with 50/125µm MMF

    ● 300m transmission with 62.5/125µm MMF

    ● Compatible with ROHS

    ● +3.3V single power supply

    ● Operating case temperature:

                                          Standard: 0 to +70°C

                                          Extended: -20 to +85°C

                                         Industrial: -40 to +85°C

    1000base sx sfp module.png


    Application

    ● Gigabit Ethernet

    ● Fiber Channel

    ● Switch to Switch interface

    ● Switched backplane applications

    ● Router/Server interface

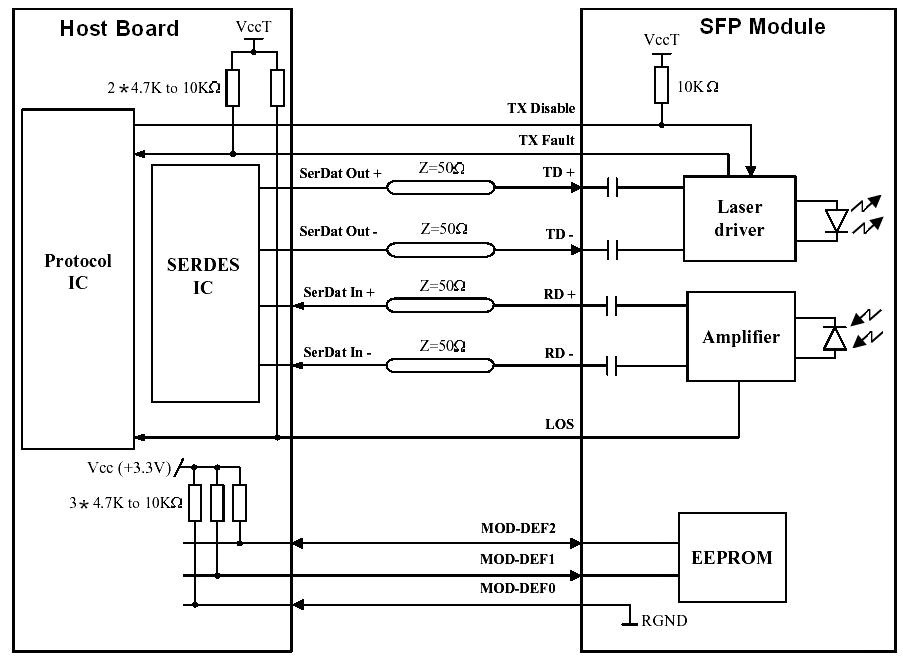

    Recommended Interface Circuit

    SFP Recommended Interface Circuit

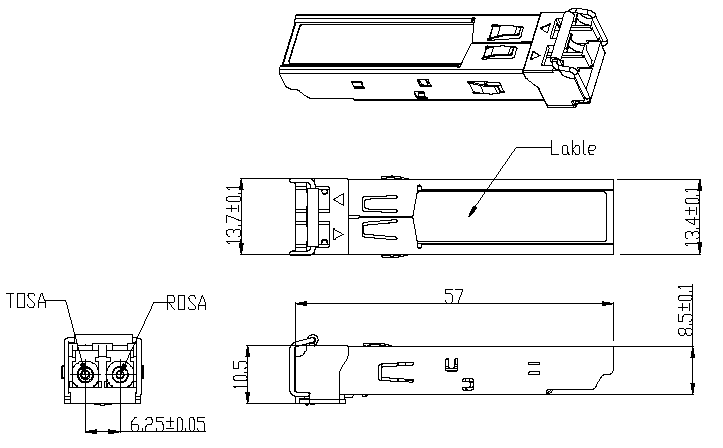

    Merchanical Dementions

    SFP Merchanical Dementions

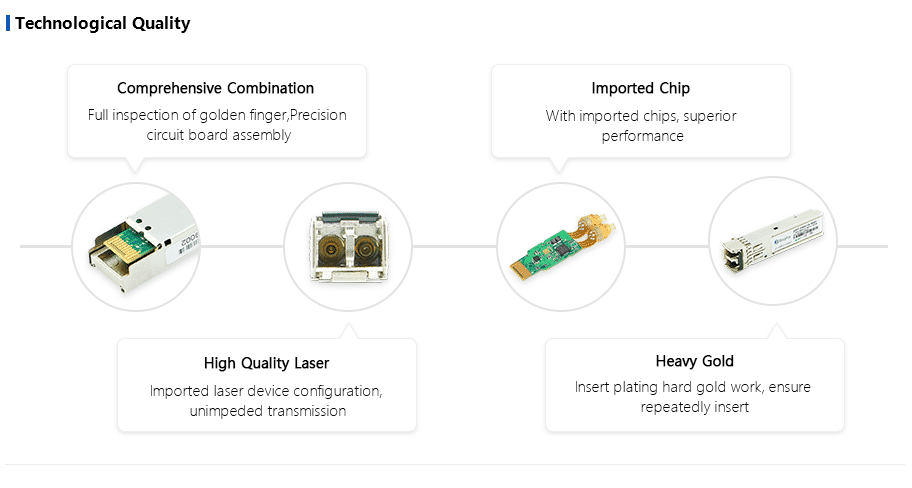

    sfp quality .png

    sfp certification.png

    Ordering Information

    P/NDescriptionDetails
    SPT-P851G-S5D850nm, 1.25Gbps, 550m, 0ºC~ +70ºC, DDM

    PDF
